Wireless RF Feeder Remote Control Kit

Garvosa Wireless RF Feeder Remote Control Kit

The Garvosa Wireless RF Feeder Remote Control Kit allows you to remotely trigger your feeder on demand while still retaining the use of your existing feeder timer. This kit is ideal for wildlife management, baiting, training animals to a feeder, or simply providing additional feed cycles whenever needed.

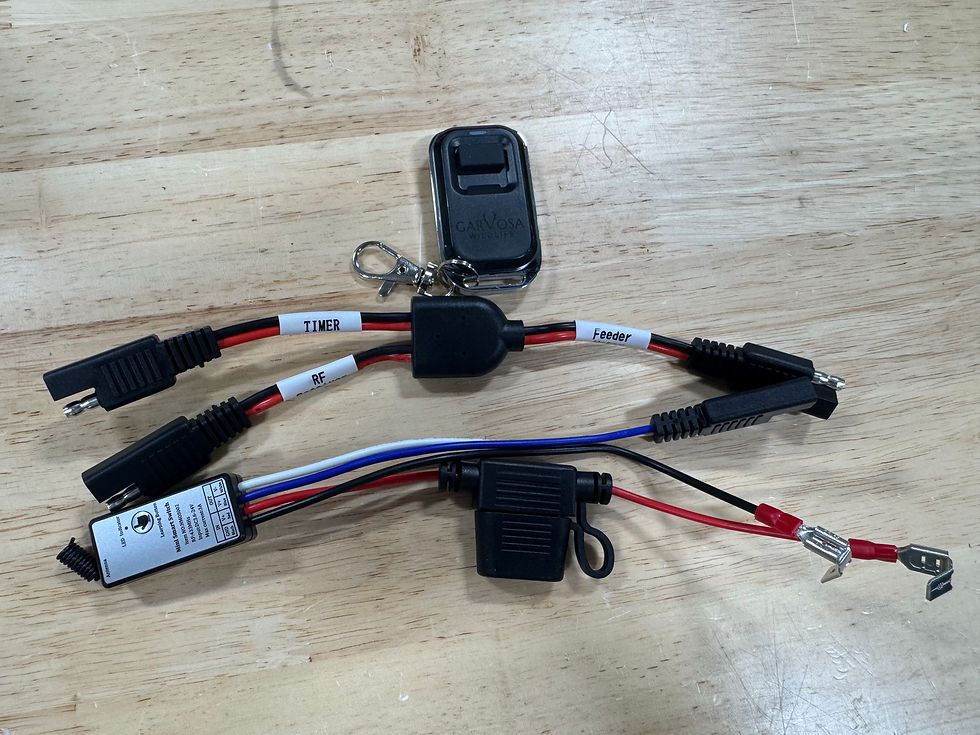

Kit Includes
• Wireless RF handheld remote
• RF receiver with SAE connector
• SAE splitter harness for connecting the feeder timer, RF receiver, and feeder motor together

The system has been tested with many popular feeder timers; however, it will NOT work when connected to the THE TIMER brand timer.

Each remote and receiver are paired together for secure operation. During setup, you can program the remote for several different operating modes, including:
• Momentary feed operation
• Approximately 5-second feed cycle
• Approximately 10-second feed cycle
• Approximately 15-second feed cycle

One remote can be paired to multiple feeder receivers, allowing you to control several feeders from a single handheld remote. The remote will only operate receivers that have been specifically paired to it.

Designed for quick installation and reliable field use, the Garvosa RF Feeder Remote Control Kit is a simple and effective way to add wireless control to your existing feeder setup.

Programming Instructions
The RF receiver installed inside the feeder includes a small Learning Button used to pair and program remotes.

Programming a Remote for Momentary Feed
Press the Learning Button one (1) time.
The blue LED should flash and then remain solid.
Press the desired button on your remote one time.
The LED on the receiver should flash three times, indicating programming was successful.
Test the remote operation.

Programming a 5-Second Feed Cycle
Press the Learning Button four (4) times.
Allow the blue LED to flash until it becomes solid.
Press the desired remote button one time.
The receiver is now programmed for approximately a 5-second feed cycle.

Programming a 10-Second Feed Cycle
Press the Learning Button five (5) times.
Wait for the blue LED to flash and then remain solid.
Press the desired remote button one time.
The receiver is now programmed for approximately a 10-second feed cycle.

Programming a 15-Second Feed Cycle
Press the Learning Button six (6) times.
Wait for the blue LED to flash and then remain solid.
Press the desired remote button one time.
The receiver is now programmed for approximately a 15-second feed cycle.

Clearing All Paired Remotes From Memory
Press the Learning Button nine (9) times.
The LED will flash five times to indicate that all programmed remotes have been erased from memory.

All previously paired remotes will need to be reprogrammed after memory has been cleared.
